Pressure Monitor
5-in-1 clean room and hospital pressure monitoring system — delivering real-time touchscreen display for Differential Pressure, Temperature, Humidity, ACH, and CFM.
Pressure Monitor
Delivering innovative and reliable Medical Engineering, tailored for Healthcare sector
Pressure Monitor — CRM Series
The Medi Smart Pressure Monitor is designed for critical healthcare environments, isolation rooms, and operating theatres. Equipped with a 7-inch resistive touch screen display and a 240MHz 32-bit LX6 central controller, it monitors 5 essential parameters with high accuracy and provides flexible mode settings for healthcare and cleanroom facilities.

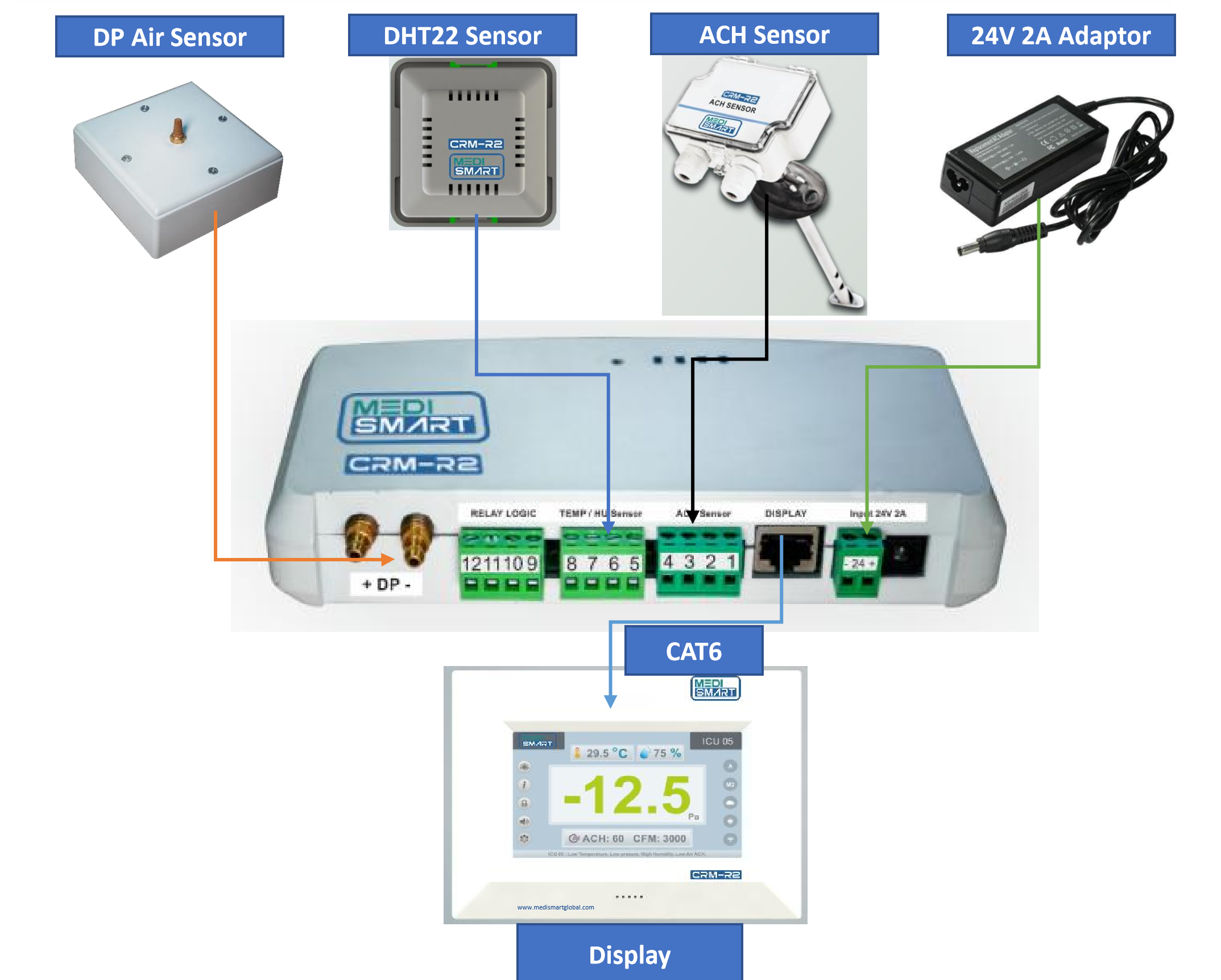

- Display CRM-DB-R2: 7inch Resistive touch screen display
- 5 Parameters: Differential pressure, Temperature, Humidity, ACH and CFM
- Controller CRM-CB-R2: 240MHz 32-bit LX6 microprocessor
- Temp & RH Sensor CRM-SC-R2: Sensitive high accuracy DHT22 digital sensor (-20 to 60°C, 5 to 95% RH)
- ACH Sensor CRM-ACH-R2: Highly sensitive analog AVT, 0 to 20 M/s, 0 to 10 Volt Analogue output
- Mode Settings: Mode 1 (Pa + Temp + RH), Mode 2 (Pa + Temp + RH + ACH), Mode 3 (Pa + ACH), Mode 4 (Pa)
- Easy Installation: 3m max cabling to ACH & Temp/RH sensors, 3ft max tubing, 7m max CAT6 cabling
- Power Supply: 24V 2A Adaptor included
Technical Specifications
Key parameters for the Medismart Pressure Monitor CRM Series
5in1 Monitoring
Differential pressure (+/- 125pa), Temperature (-20 to 60°C), Humidity (5 to 95% RH), ACH (0 to 100 Air change/Hour), and CFM (0 to 3000 CFM).
Mode Settings
Mode 1 (Pa + Temp + RH), Mode 2 (Pa + Temp + RH + ACH), Mode 3 (Pa + ACH), and Mode 4 (Pa differential pressure only).
Easy Installation
3m max cabling to ACH and Temp + RH sensors, 3ft max tubing required for DP air sensor, and 7m max Cat6 cabling to display.
Certified Manufacturing
Certified - ISO 9001: 2015, ISO 45001 : 2018, ISO 14001 : 2015 & ISO 13485 : 2016 Healthcare Product Manufacturing Company.
Applications
Delivering innovative and reliable Medical Engineering across healthcare facilities
Isolation Rooms
Differential pressure monitoring for negative and positive pressure patient isolation rooms.
Operating Theatres
Positive room pressure, temperature, humidity, and ACH airflow tracking for surgical suites.
Cleanrooms & Pharma
Environmental parameter verification for sterile cleanrooms and compounding areas.
Intensive Care Units
Critical environment monitoring for ICUs, NICUs, and critical care departments.
Laboratories
Pressure differential and air exchange monitoring for research and clinical laboratories.
Hospital Ventilation
Air changes per hour (ACH) and CFM flow rate verification for medical facility HVAC systems.
Need a Pressure Monitoring Solution for Your Facility?
Our engineering team will configure and deliver a Pressure Monitoring system tailored to your healthcare requirements. ISO-certified. Globally experienced.
